Since the last update, I’ve been working on the cockpit so I can finally put the fuselage together.

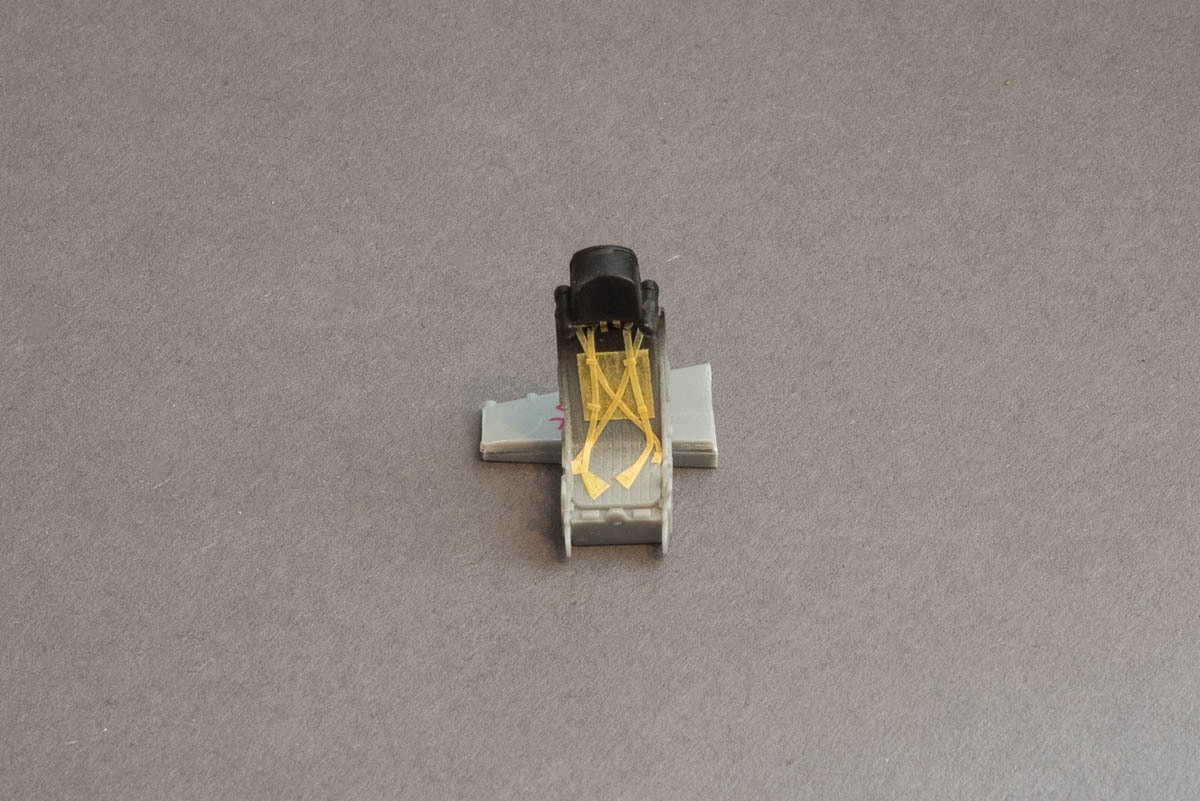

Ejection seat itself is sufficiently detailed in the scale. I however cannot understand why, if they included the photo-etched details, they did not include the harnesses as well. Oh well, out with the Tamiya masking tape – maybe not perfect but much better than the stock seat.

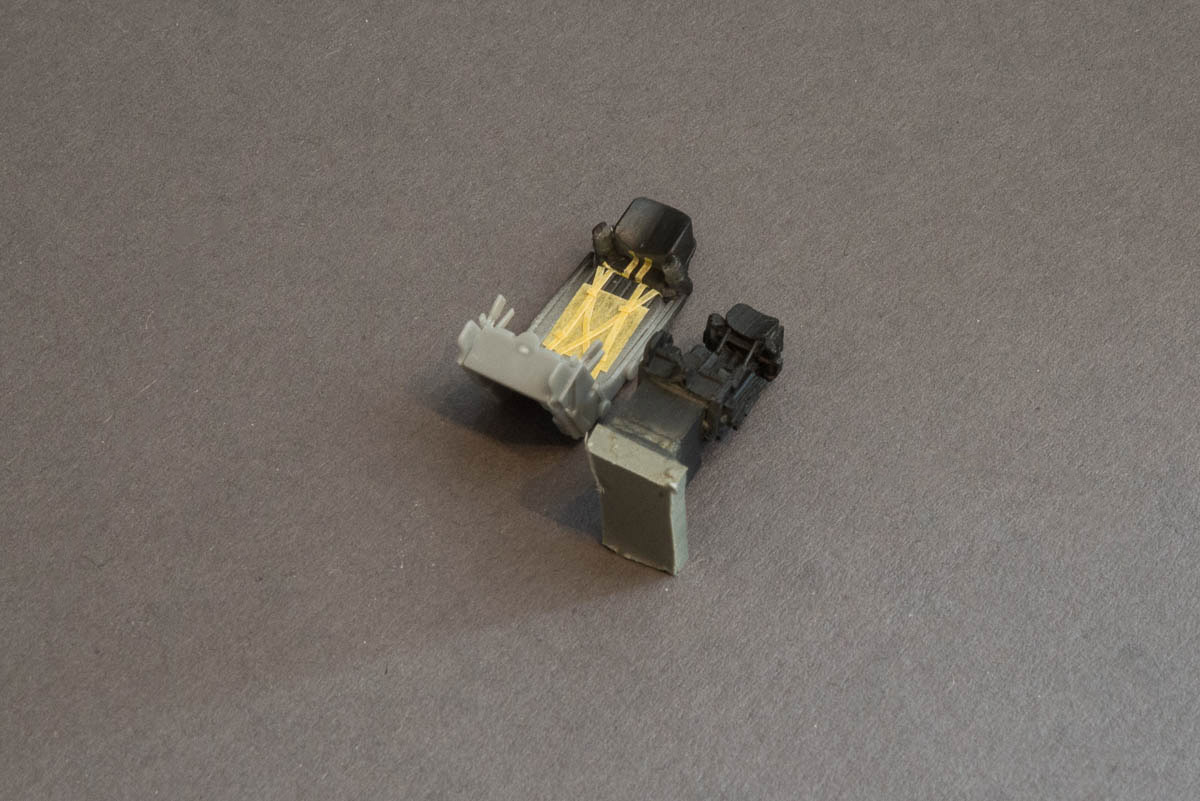

I’ve mentioned the scale problem earlier. Here’s a comparison of kit’s seat to NeOmega resin one. See the difference! That’s exactly one of the reason, you cannot use any available aftermarket sets and I haven’t found any for the HobbyBoss kit.

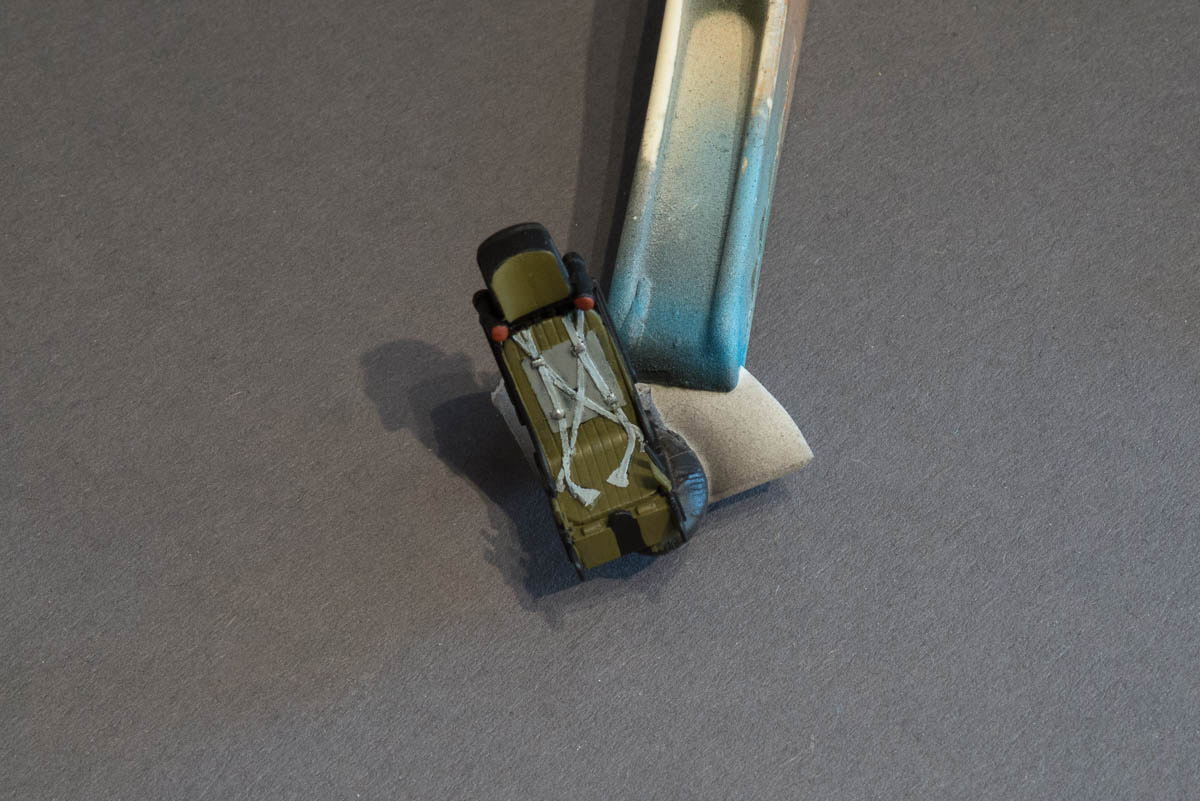

Adding some colour to the black seat. At least the newer generation K-36 seats have olive padding instead of black leather as on earlier versions.

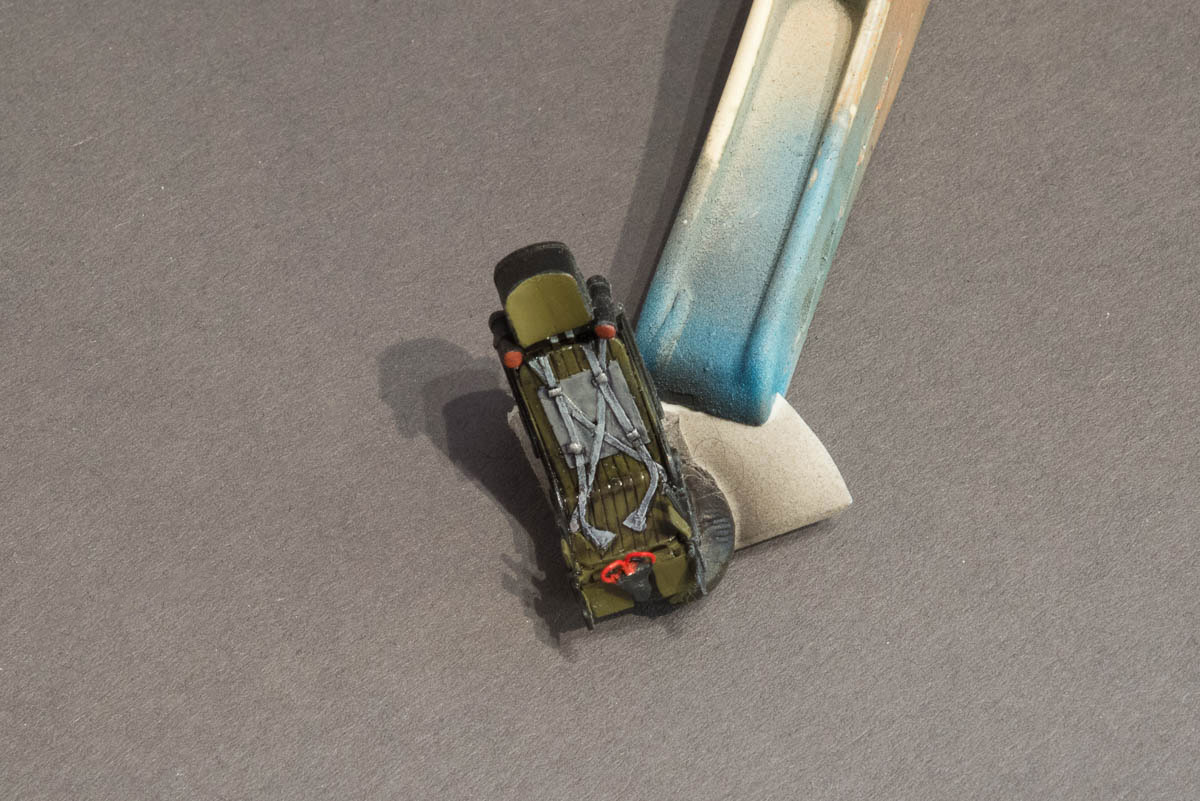

Adding some dark wash and drybrushing brings out all the lovely details and gives more depth, more 3D feel to the seat. Ejection seat handles are included on the PE set, but they were lost to the Styrenosaurus Rex so I’ve made my own from thin copper wire and correctly depicted the black cover for them, missing on the PE fret.

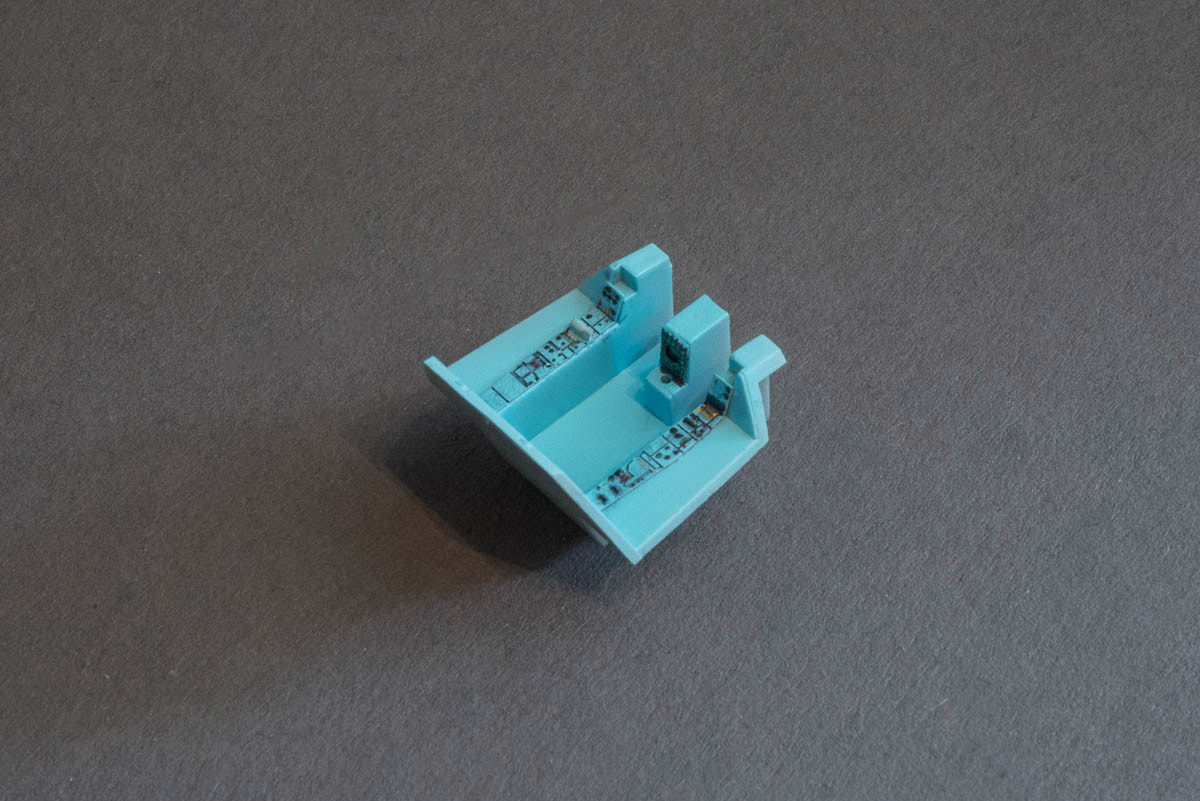

Cockpit tub detailing is done mostly with PE parts. I have to say that I haven’t seen any of the actual PAK-FA cockpit photos yet, only simulator ones, that highly resemble the ones found in the 4++ gen Su-35S. Accuracy, apart from the front instrument panel, is questionable at best. The problem is, that while the PE parts are sized spot on for plastic parts, the details on them are really faint and are a core to paint.

Using tooth pick, needles and similar pointy tools and with the helpful magnification of my Optivisor I managed to paint the pit adequately, I would say. Thin dark wash helped to bring out some details, mainly the panel lines.

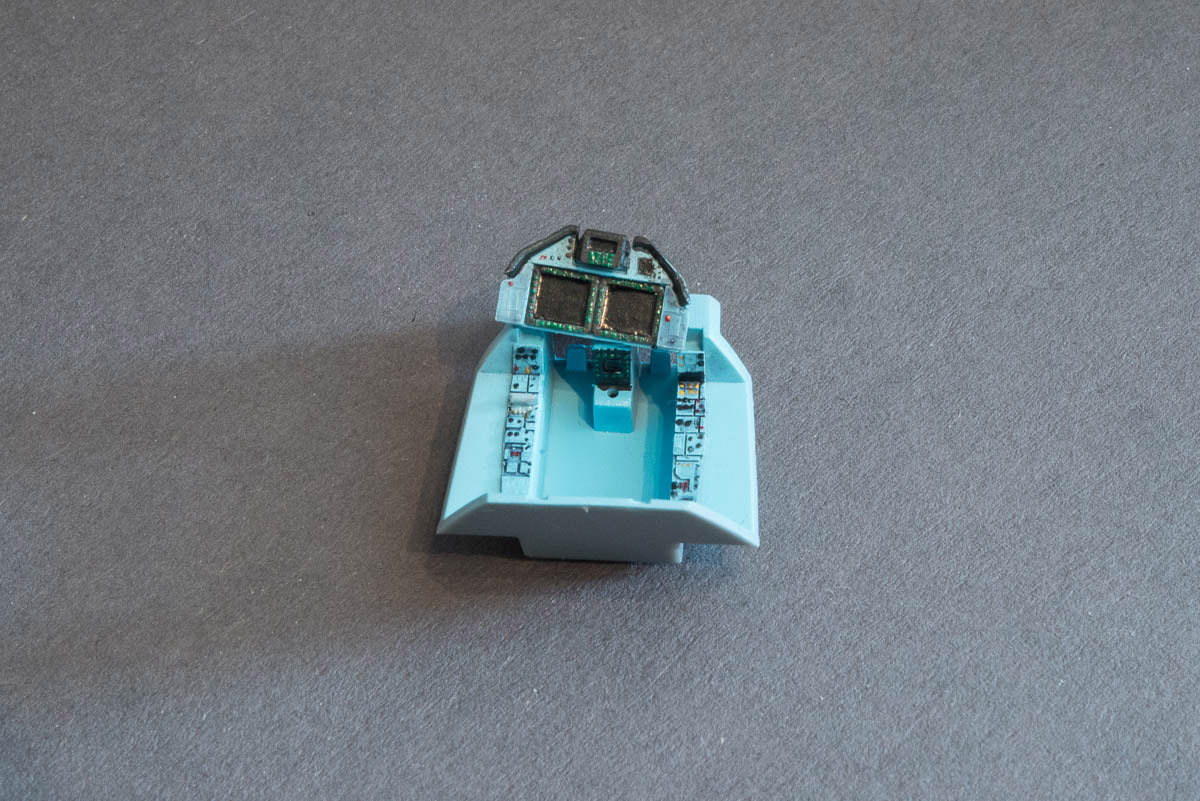

Large MFDs with green buttons on the frames, were painted gloss black for shut-down monitor views. Instrument panel not yet fixed on this shot.

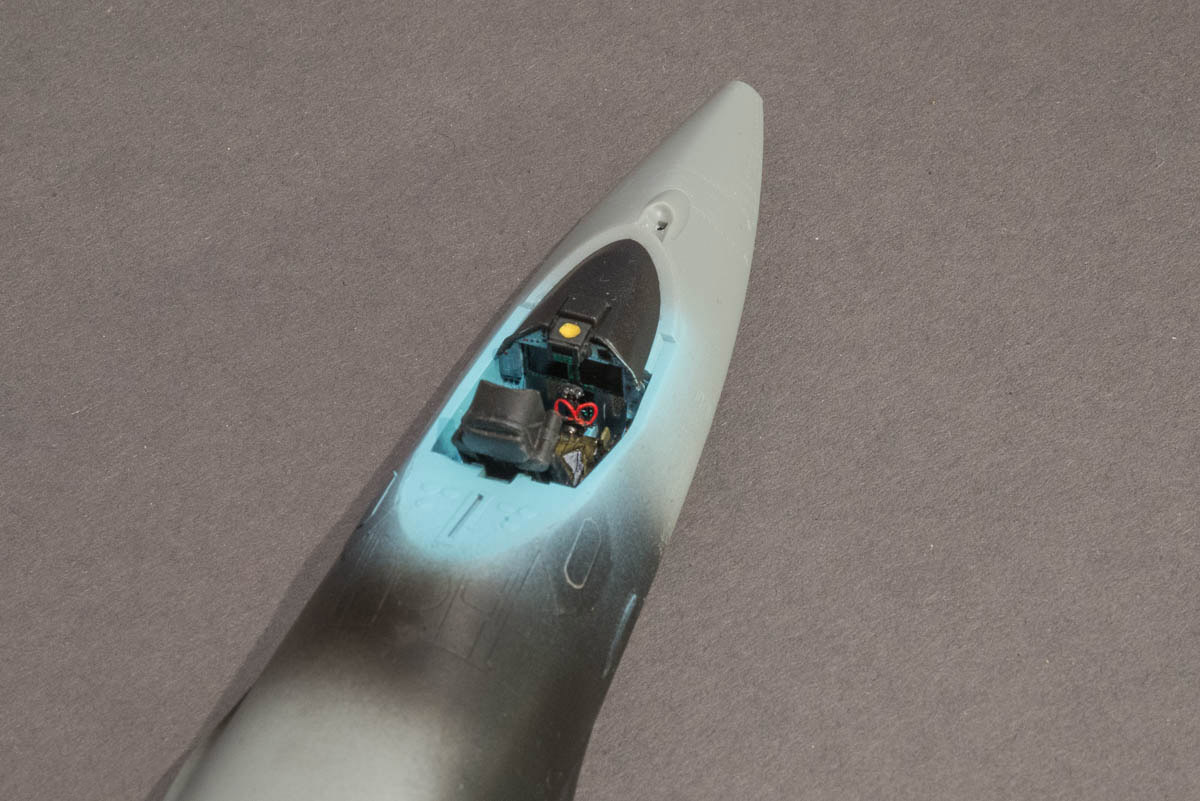

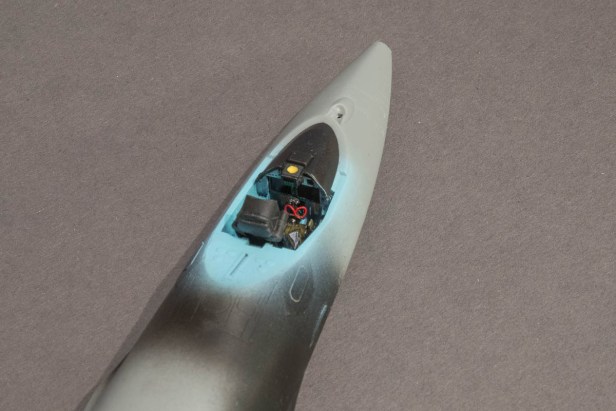

And the tub finally fixed into the fuselage. The fit so far is great. There are some details still missing in the cockpit, especially the HUD and details behind the ejection seat, but they will be added later, before closing the canopy.
